Kunz Engineering AcrEase MR55BE 57" 27HP Rough Cut Pull-Behind Mower

Product Description

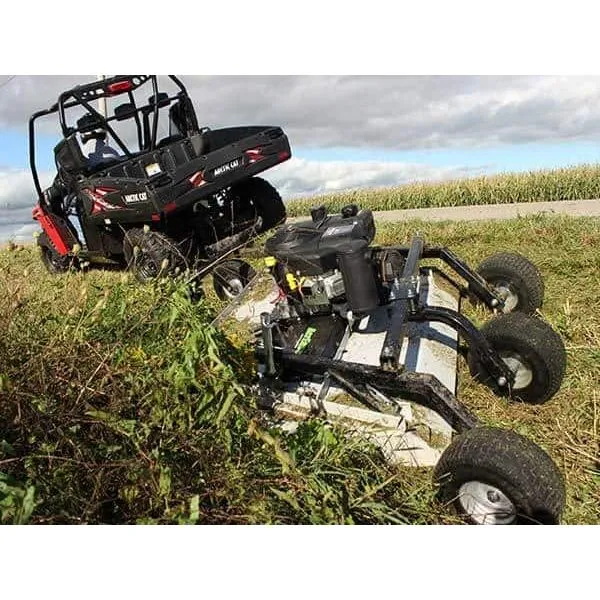

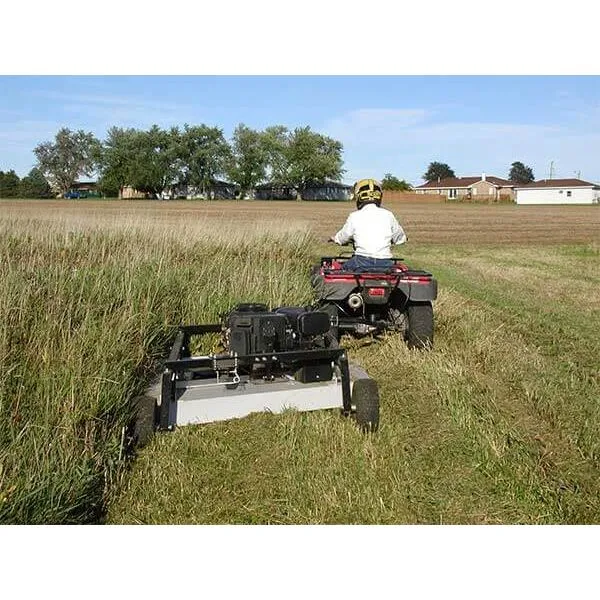

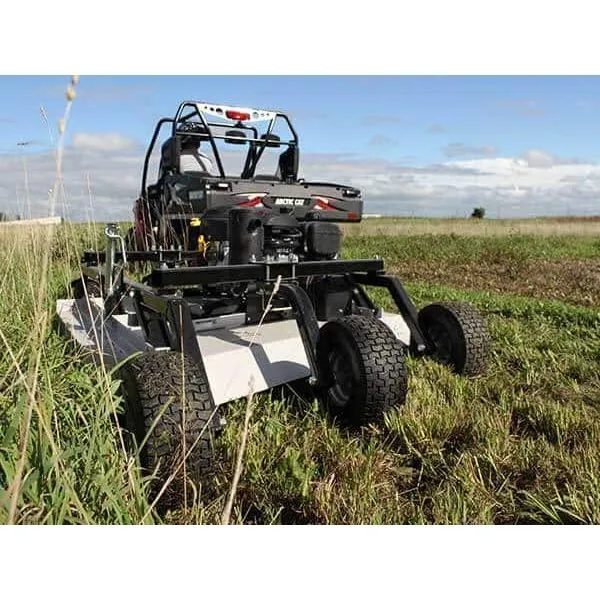

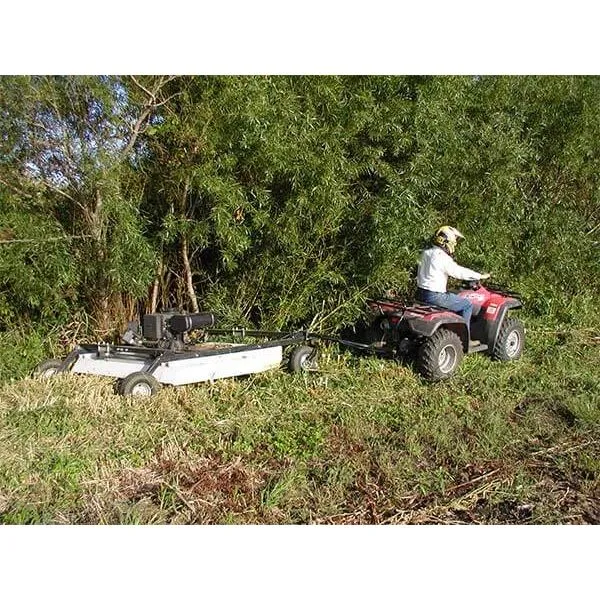

Top of the line 57″ rough cut model with a commercial grade twin cylinder electric start engine and electric clutch blade engagement.  Works great behind an ATV, UTV or small tractor for larger acreage jobs.

• 57″ Cutting Width
• 27 HP Briggs & Stratton Commercial Grade Twin Cylinder Engine
• Commercial Grade Deck Assembly
• 4 Tire Design
• Quick Two Crank Height Adjust System
• Height Adjustment Range From 2″ to 8″
• Electric Clutch Blade Engagement
• Conservative 2″ Diameter Sapling Rating
• Pull Directly Behind or Fully Offset to the Side of the Tow Vehicle.

Features

• 27HP Briggs & Stratton Commercial Turf commercial grade twin cylinder engine
• The blade spindles used on the AcrEase mowers are built out of heavy-duty welded steel hubs, 30mm (1-3/16") steel shafts, machined steel blade holders and large sealed ball bearings.
• The cutting height can quickly and easily be adjusted from 2"-8" with the two crank height adjustment system.
• The main deck is built out of 10 GA (.135") thick steel with a 1/4" thick steel top plate for reinforcement. An additional 1/4" thick steel plate is welded in the blade spindle mounting location. The three layers of steel in the blade spindle mounting area add up to just over 5/8" thick.
• Unique twin blade design provides more of a mulch action that reduces the size of the clippings and reduces bunching.
• The blades are engaged with an electric clutch which is activated by simply pulling a switch. Electric clutches can extend the life of the belt and reduce overall belt maintenance.
• The tow bar features a farm clevis type connection. This system provides more degrees of motion than most types of hitching systems. This is necessary to prevent binding in rough uneven terrain.
• Large 3-1/4 gallon fuel tank that provides 3 to 3-1/2 hours of run time

Specifications

• Class Mower: Rough Cut (Rear Discharge)
• Engine Make: OHV Briggs & Stratton Commercial
• Engine Model: Commercial Turf Twin
• Engine HP: 27
• Lubrication Method: Pressure With Filter (Low Oil Pressure Shut-Off Included)
• Air Filter Type: Cyclonic Air Filtration System
• Electric Start (Battery not included): Yes
• Hour/Tach Meter Optional
• Number of Mower Blades: 2-30″
• Blade Tip Speed (ft/min): 19000
• Cutting Width: 57″
• Cutting Height: 2.0 to 8.0 By Two Cranks
• Hitch: Direct Behind or Full Offset to Either Side
• Blade Engagement Clutch: Electric Clutch
• Deck Metal Thickness: 10 GA (.135″)
• Deck Top Plate Thickness: Two 1/4″ Thick Plates
• (Blade Spindle Attachment Area)
• Weight: 580 lbs
• Pneumatic Fixed Rear Tires: 15/600×6, 4 Ply Tubeless (Flat Proof Option Available)
• Pneumatic Front Tires on Casters: 5.30/4.50×6, 4 Ply Tubeless (Flat Proof Option Available)
• Fuel Tank Size: 3 Gal.
• Blade Spindles
• Shaft Size: 30 mm (1-3/16″)
• Bearing #: 6206-2RST
• Drive Method: 1 B Section “V” Belt (Kevlar)
• Warranty: 1 Year Commercial
• Warranty – Engine: 3 Year Commercial
