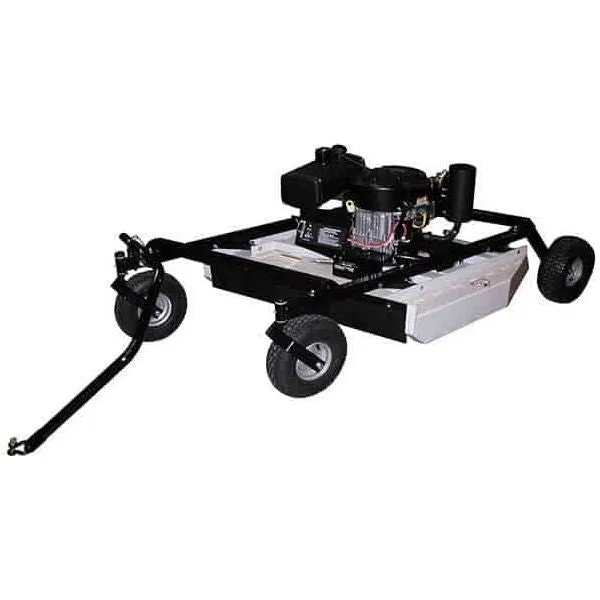

Kunz Engineering AcrEase MR44BE 44" 23HP Rough Cut Pull-Behind Mower
Product Description

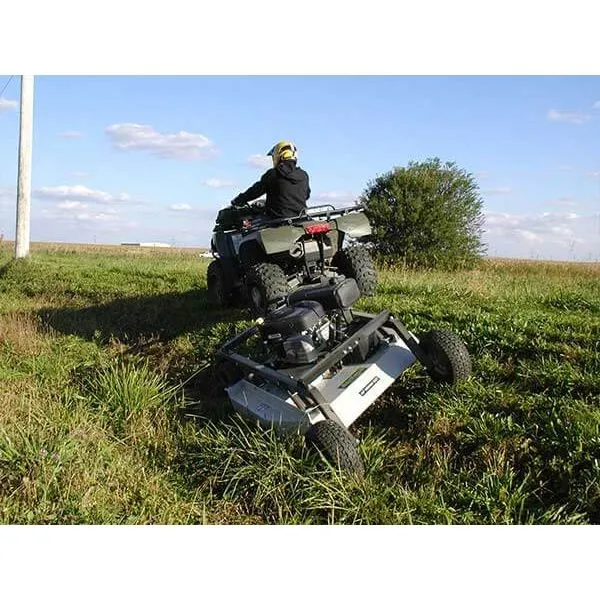

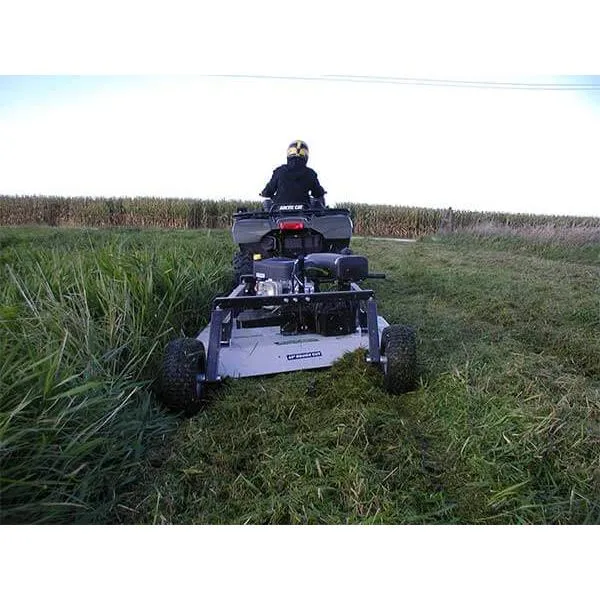

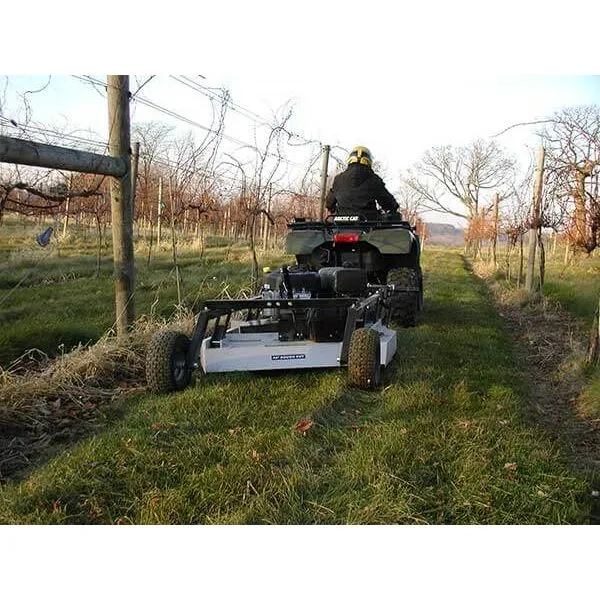

Top of the line 44″ rough cut model with a commercial grade twin cylinder electric start engine and electric clutch blade engagement. Works great behind an ATV for smaller acreage jobs or tight clearance conditions.
- 44″ Cutting Width
- 23 HP Briggs & Stratton Commercial Grade Twin Cylinder Engine
- Commercial Grade Deck Assembly
- 4 Tire Design
- Quick Single Crank Height Adjust System
- Height Adjustment Range From 2″ to 8″
- Electric Clutch Blade Engagement
- Conservative 2″ Diameter Sapling Rating
- Pull Directly Behind or Fully Offset to the Side of the Tow Vehicle.
Features
- 23HP Briggs & Stratton Commercial Turf commercial grade twin cylinder engine
- The blade spindles used on the AcrEase mowers are built out of heavy-duty welded steel hubs, 30mm (1-3/16") steel shafts, machined steel blade holders and large sealed ball bearings.
- The cutting height can quickly and easily be adjusted from 2"-8" with the single crank height adjustment system.
- The main deck is built out of 10 GA (.135") thick steel with a 3/16" thick steel top plate for reinforcement. An additional 1/4" thick steel plate is welded in the blade spindle mounting location. The three layers of steel in the blade spindle mounting area add up to just under 5/8" thick.
- Unique twin blade design provides more of a mulch action that reduces the size of the clippings and reduces bunching.
- The blades are engaged with an electric clutch which is activated by simply pulling a switch. Electric clutches can extend the life of the belt and reduce overall belt maintenance
- The tow bar features a farm clevis type connection. This system provides more degrees of motion than most types of hitching systems. This is necessary to prevent binding in rough uneven terrain.
- Large 3-1/4 gallon fuel tank that provides 3 to 3-1/2 hours of run time
Specifications
- Class Mower: Rough Cut (Rear Discharge)
- Engine Make: OHV Briggs & Stratton Commercial
- Engine Model: Commercial Turf Twin Cylinder
- Engine HP: 23
- Lubrication Method: Pressure With Filter (Low Oil Pressure Shut-Off Included)
- Air Filter Type: Cyclonic Air Filtration System
- Electric Start (Battery not included): Yes
- Hour/Tach Meter: Optional
- Number of Mower Blades: 2-23″
- Blade Tip Speed (ft/min): 19000
- Cutting Width: 44″
- Cutting Height: 2.0 to 8.0 With Single Crank Assy
- Hitch: Directly Behind or Full Offset to Either Side
- Blade Engagement Clutch: Electric Clutch
- Deck Metal Thickness: 10 GA (.135″)
- Deck Top Plate Thickness: 3/16″ Backed With 1/4″ Plate at Blade Spindles
- (Blade Spindle Attachment Area)
- Weight: 530 lbs
- Pneumatic Fixed Rear Tires: 15/600×6, 4 Ply Tubeless (Flat Proof Option Available)
- Pneumatic Front Tires on Casters: 5.30/4.50×6, 4 Ply Tubeless (Flat Proof Option Available)
- Fuel Tank Size: 3 Gal.
- Blade Spindles
- Shaft Size: 30 mm (1-3/16″)
- Bearing #: 6206-2RST
- Drive Method: 1 B Section “V” Belt (Kevlar)
- Warranty: 1 Year Commercial
- Warranty – Engine: 3 Year Commercial
